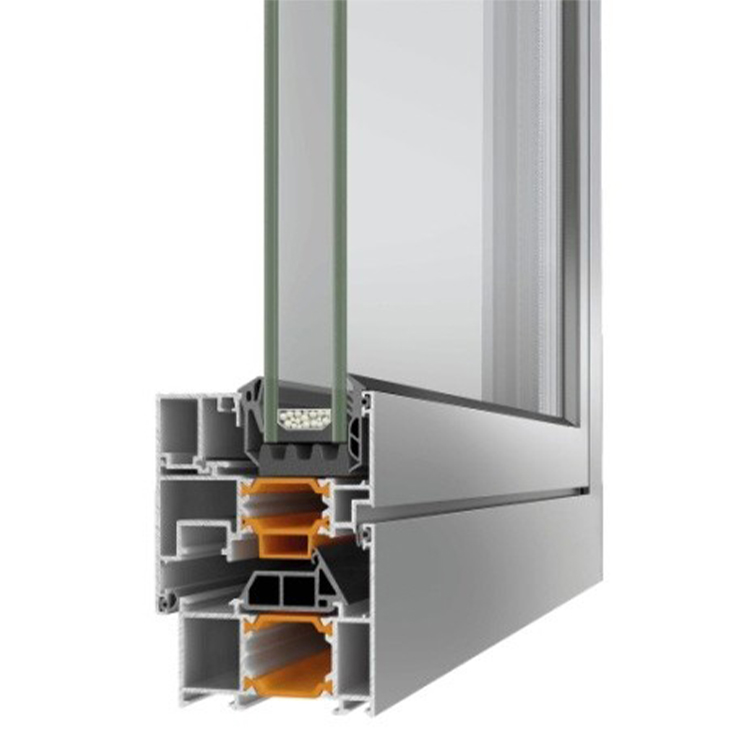

S67 is a thermally insulated aluminium system for windows and doors with Tilt & Turn opening. It is designed to provide excellent thermal insulation, structural flexibility, and modern architectural design.
Features
- System type: Tilt & Turn
- Frame depth: 67 mm
- Sash depth: 75 mm
- Minimum visible width: 93 mm
- Glazing: Double / Triple glazing
- Burglar resistance: RC2 / RC3
- Maximum glazing thickness: Up to 58 mm
- Thermal polyamide: 30 mm
- Sash depth: 75 mm
- Maximum sash weight: 180 kg
- Air permeability: Class 4
- Uf value: 1.1–2.6 W/m²K
- Gaskets:EPDM, 3 levels
- Hardware / Mechanism:Euro-groove / Euro-nut
- Water tightness:E1200 / Euro-nut
- Wind resistance:C5
- Acoustic insulation:Up to 45 dB
Geometries
What is special about S67?
The S67 system can accommodate glazing up to 58 mm thick, making it suitable for triple-glazing configurations and high-performance glazing solutions.
It also features three levels of insulation with EPDM gaskets, providing enhanced protection against air and water infiltration and contributing to the overall thermal and acoustic performance of the window.
